| TypeUtility Helicopter, Multipurpose Helicopter
Powerplant 2x Safran Helicopter Engines Arriel A2C2-CG turboshafts SPEEDS AT MAX GROSS WT |
||
| VNE | 155 kts | 287 km/h |
| Max Cruise | 145 kts | 268 km/h |
| Range at VLRC* | 427 nm | 790 km |
| Max Endurance* | NA | |
| CAPACITIES | ||
| Standard Seating | 12 | |
| Maximum Seating | 14 | |
| Standard Fuel | 300 gal Lb | 1135 liters |
| Cabin Volume | 180 cu ft | 5.0 cu m |
| Aft (Baggage) Compartment Volume | 3884 cu ft | NA |
| WEIGHTS | ||
| Empty Weight (IFR Standard Configuration) | 5315 Lb | 2410 kg |
| Max Gross Weight (Internal) | 9369 lb | 4249 kg |
| Max Gross Weight (Internal, Optional) | 9369 lb | 4249 kg |
| Useful Load (Internal, IFR Standard Configuration) | 4246 Lb | 1925 kg |
| Useful Load (Internal, Optional, IFR standard configuration) | 4246 Lb | 1925 kg |
| Cargo Hook Capacity
Length Rotor Diameter |
NA
45 ft 05 in 39 ft 17 in |
NA
14 m 12.31 m |
Variants
- SA 365C: Initial variant introduced in 1978.
- SA 365C1: Variant with Arriel 1a1.
- SA 365C2: Variant with Arriel 1A2.
- SA 365 C3: Variant with Arriel 1C
- SA 365N: Variant with enlarged tail surfaces and retractable tricycle undercarriage.
- SA 365N1: Upgraded with improved rotor balded and Arriel 1c1 turboshafts.
- AS 365 N2: Variant with upgraded cabin doors and Arriel 1C2 turboshafts.
- AS365 N3: Variant with Arriel 2c turboshafts.
- AS365N3+: Variant with Arriel 2c outfitted with DECU digital engine control unit with improved horsepower up to 851 shp.
Market Information
Status: In production.
Total Built: 1000+.

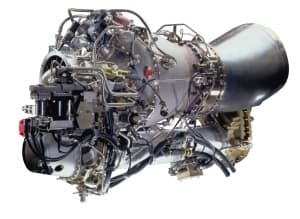

Powerplants
Aerial 2s2 turboshaft
Speciations for 2s2 turboshaft
Specifications for Arrial 2s2
Compressor single-stage axial plus single-stage centrifugal
Combustors Annular combustion
Turbine 2 single-stage power turbine, two-stage gas generator turbine.
Maximum Power 681 shp (508 Kw)
Overall Pressure Ratio NA
Turbine inlet temperature NA
Power-to-weight ratio NA
